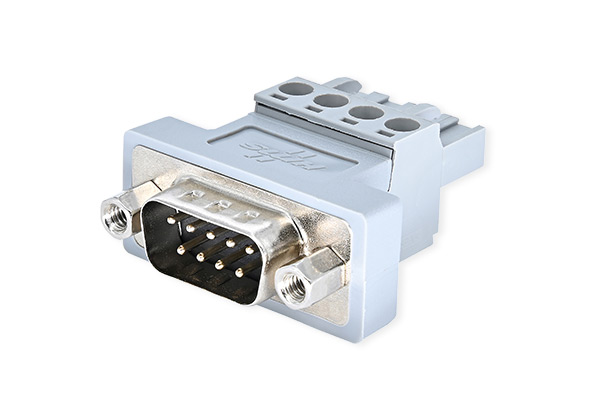

Ixxat CAN Adapter Screw Terminals to D-Sub 9

D-Sub CAN Connector for the PCAN-Repeater


All prices are plus the at present valid value added tax! For volume discounts, please contact order.peak@hms-networks.com.

Description

The Ixxat CAN adapter efficiently converts the 4-pin CAN screw terminal connection of the PCAN-Repeater to a standardized 9-pin D-Sub connector.  Thus, it is possible to use our standard CAN cables with the PCAN-Repeater and connect them to our PC CAN interfaces.

The adapter can be used for CAN and CAN FD buses.

Note: The Ixxat CAN adapter is only suitable for the PCAN-Repeater, for other PEAK devices in DIN rail housing please use the PCAN-Adapter D-Sub for DR Products (IPEK-003012)

Technical Specifications

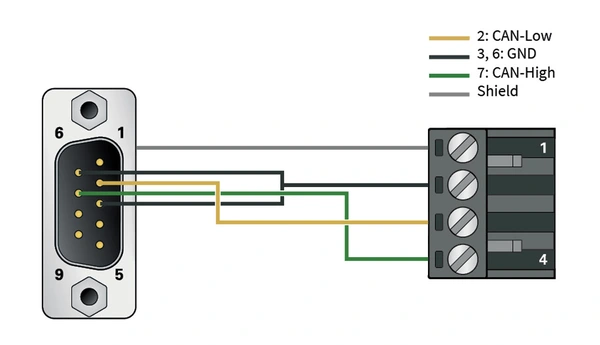

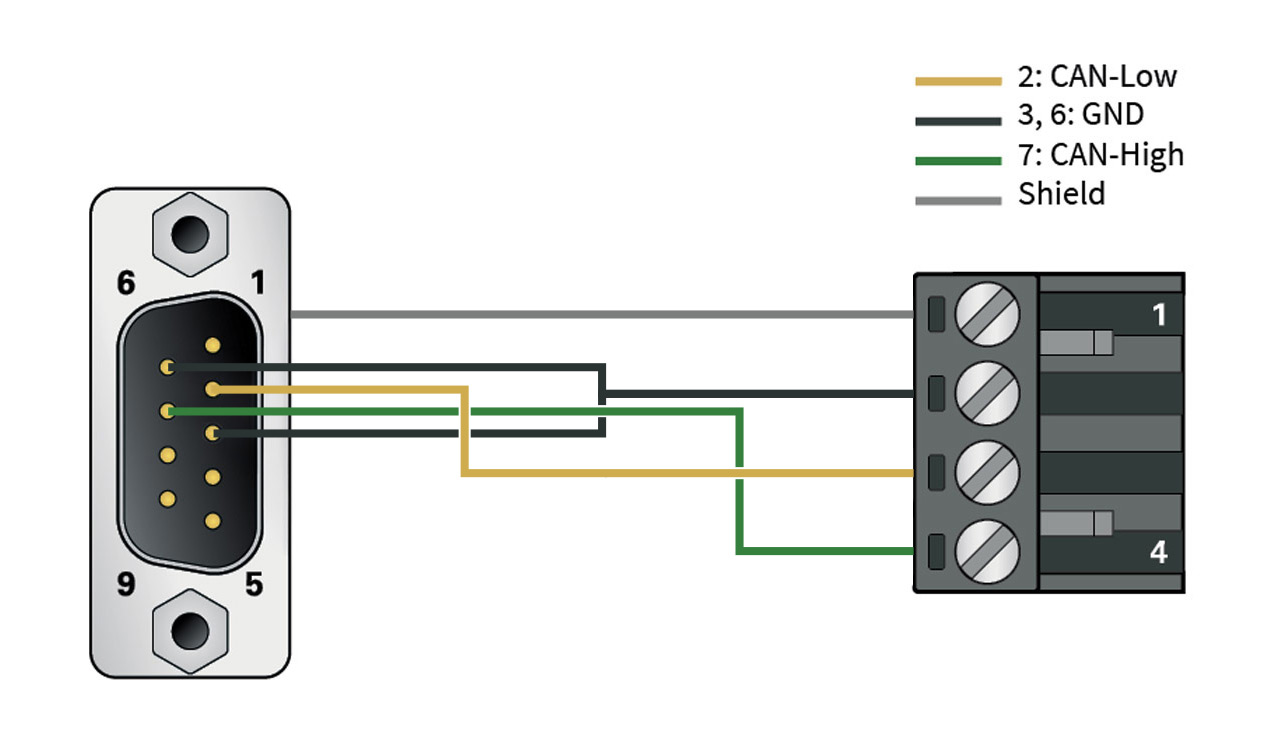

  • 4-pin screw terminal block (Phoenix) to 9-pin D-Sub connector (according to CiA® 106)
  • Suitable for CAN connection adaptation of the products:
    • PCAN-Repeater
  • No termination
  • Suitable for the use in CAN FD buses

Scope of Supply

  • 1.04.0074.03000: Ixxat CAN adapter screw terminals to D-Sub 9

More

Additional information

Suitable to be used with

  • PCAN-Repeater: CAN CC and CAN FD Repeater for Decoupling Bus Segments
